Screw convyor
Screw convyor
Mahesh Fabricators - Hot Air Blowers

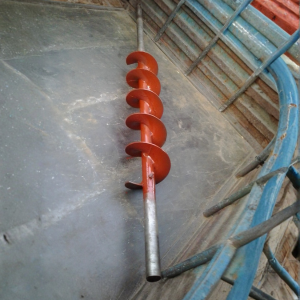

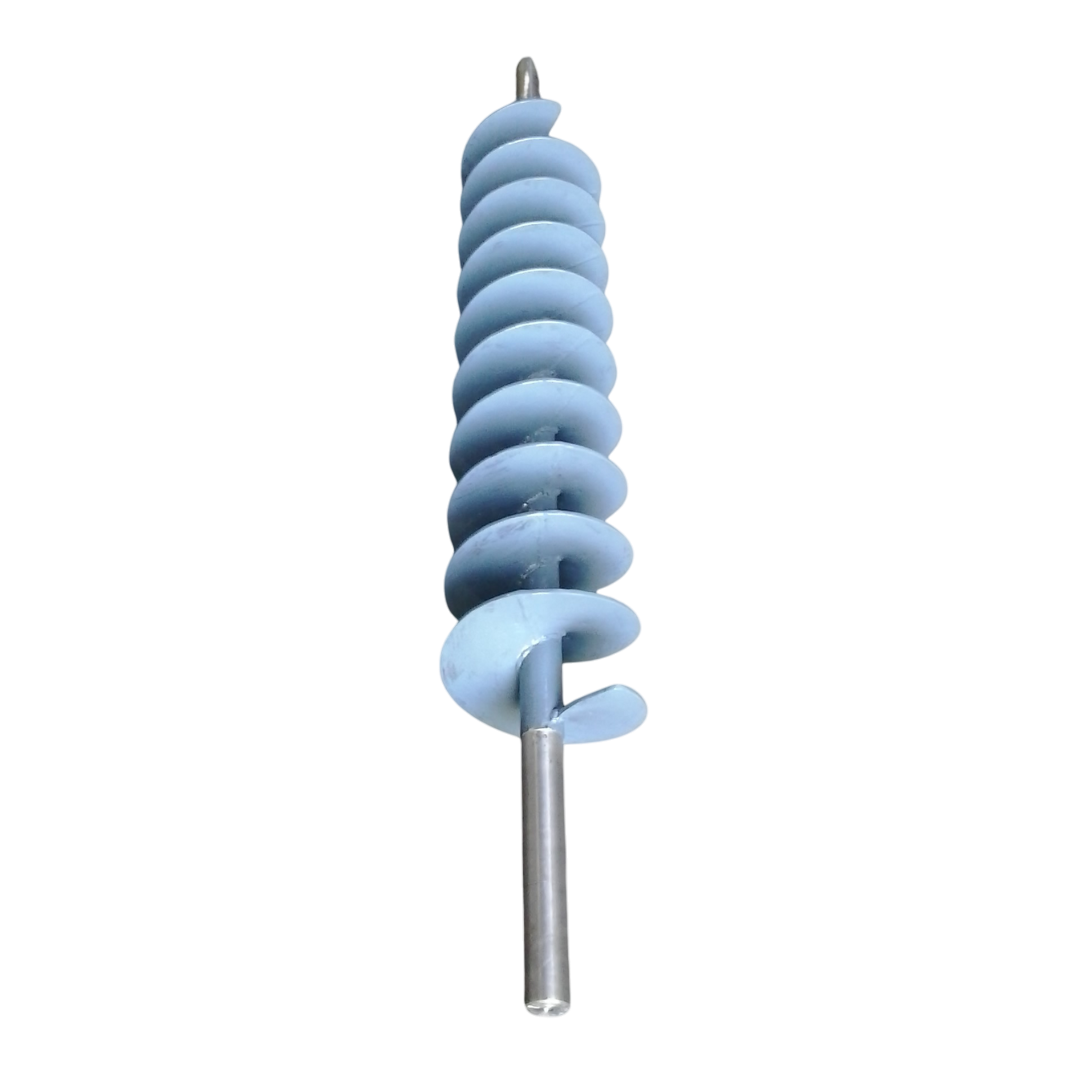

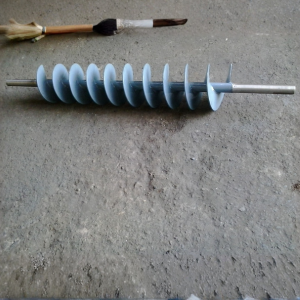

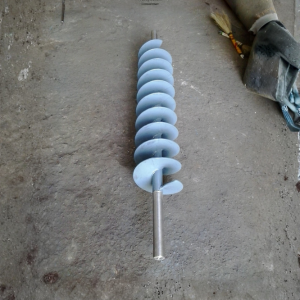

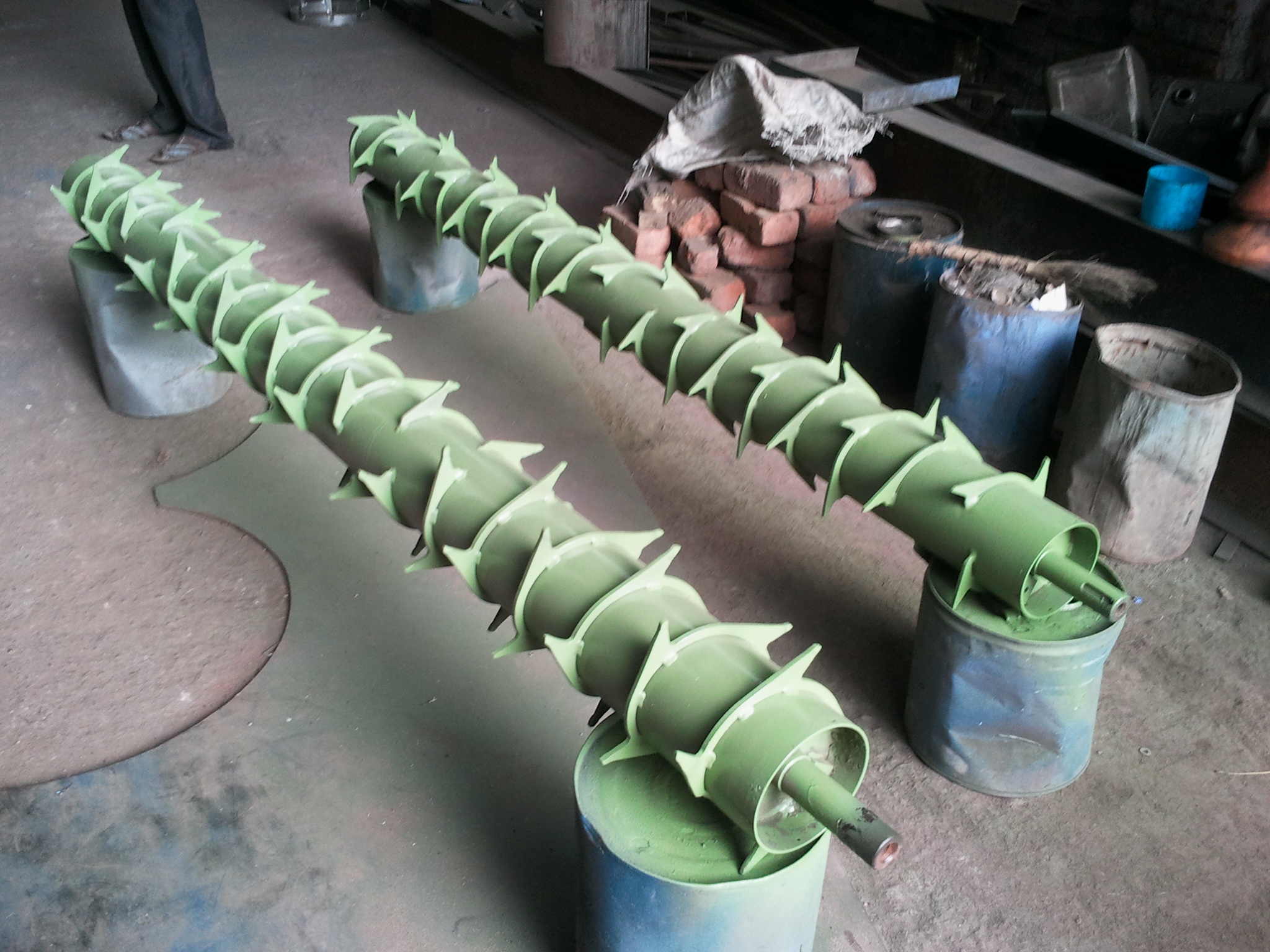

This is a Screw Conveyor, a mechanical device designed for efficient material handling in industries. It uses a rotating helical screw blade to move bulk materials such as powders, grains, granules, or semi-solid substances through a tube or trough. Screw conveyors are widely used in manufacturing, agriculture, chemical, food processing, and construction industries due to their ability to handle both horizontal and inclined conveying. They are durable, space-efficient, and ideal for controlled and continuous material flow.

A screw conveyor is a highly efficient material handling equipment that uses a rotating helical blade to move bulk materials from one point to another. It is commonly used for transporting powders, grains, granules, and semi-solid materials in various industries.

Benefits Features Applications

Technical Details

  • Construction: MS or SS (304/316) flights with solid shaft
  • Screw diameter range: 100–600 mm (custom on request)
  • Pitch & flight type: standard/variable, solid or ribbon flight
  • Orientation: horizontal or inclined conveying up to ~45°
  • Capacity: up to 60 TPH depending on material bulk density
  • Drive: helical geared motor or chain drive, end/center drive
  • Bearings: sealed end bearings with hanger bearings for long runs
  • Inlet/Outlet: flanged connections with dust-tight covers

Features

  • Controlled, continuous flow of powders, grains and granules
  • Compact, space-saving design with simple installation
  • Dust-tight operation for clean and safe handling
  • Low maintenance with few moving parts
  • Customizable length, diameter, liners and wear options

Applications

  • Cement, fly ash, sand and lime handling
  • Food grains, flour, sugar and spices conveying
  • Plastic granules, regrind and masterbatch
  • Chemical powders, detergents and minerals
  • Biomass, sludge and waste processing plants
REQUEST A QUOTE
